Inspecting the results: covplot

Covplot

After a run of Wolfpack, the orgs_list.tsv files show how many reads per sample are assigned to a given viral organism, and (unless --nocovplot is requested), the tool also creates coverage plots for a few viral organisms of interest, given that:

  • ≥3 sequencing reads match a specific viral organism.
  • The weighted mean coverage score for a viral organism is ≥10%.
  • The viral organism is not a phage nor a non-human virus.

See documentation of Virus scan for more information.

In some cases, however, users may be interested in generating coverage plots of other viral organisms, even if such organisms don't meet the mentioned criteria.

For that, they can use the subcommand virmet covplot. Information on how to use it can be obtained with -h:

virmet covplot -h
usage: virmet covplot [options]

Options:
  -h, --help           show this help message and exit
  --outdir [OUTDIR]    path to store the coverage plots
  --organism ORGANISM  ssciname of the organism of interest
  --dbdir [DBDIR]      path to find and use the Virmet database

Importantly, users must specify the virmet_output_RUN_NAME/SAMPLE_NAME with --outdir. Otherwise, VirMet doesn't know where to look for the analysed mNGS outputs. The resulting coverage plots will be saved in the same folder.

Covplot also requires users to specify the ssciname of the organism of interest, which can be found in the orgs_list.tsv file.

To create coverage plots, VirMet will assume that the viral database is stored into /data/virmet_databases and follows the usual VirMet structure. If another path should be considered, users must specify it with --dbdir.

Example

As an example, let's suppose users want to investigate sample ABC-DNA_S9 in the directory virmet_output_Exp01. First, they go to the directory virmet_output_Exp01/ABC-DNA_S9 and check which coverage plots have already been created automatically by VirMet Wolfpack.

They see the following:

virmet_output_Exp01/
├── ABC-DNA_S9
│   ├── Virus_X/
│   │    └── Virus_X_coverage.pdf
│   ├── unique.tsv.gz, viral_reads.fastq.gz, undetermined_reads.fastq.gz
│   ├── orgs_list.tsv, stats.tsv, fastp.html
│   └── Others.err
├── run_reads_summary.tsv
└── orgs_species_found.tsv

After that, users may inspect the orgs_list.tsv file and look for any other interesting viruses that didn't meet the above criteria but may still be worth considering.

species             accn        reads  stitle              ssciname               covered_region  seq_len
Tunavirus T1        MK213796.1  455    Phage T1            Escherichia phage T1   30152           48836
Virus X             XX123412.1  79     Virus X, isolate R  Virus X                321             137741
Coronavirus BCoV    XX000111.1  40     Coronavirus ABC     Bovine coronavirus     141             9372

Users know that Virus X seems to be a good candidate and inspect the created coverage plot (Virus_X_coverage.pdf). However, they think that Bovine Coronavirus may also be interesting.

Therefore, they run:

virmet covplot --outdir virmet_output_Exp01/ABC-DNA_S9 --organism "Bovine coronavirus".

The subcommand covplot will perform the following steps:

  1. Identify all mappings read-organism where the organism name starts with "Bovine coronavirus",
  2. Identify the genome (or strain of this organism) with the highest number of reads mapped,
  3. Align all viral reads to it,
  4. Compute the coverage, write it to depth.txt and plot it.

The final result is a pdf file with the name Bovine_coronavirus_coverage.pdf, saved into:

virmet_output_Exp01/ABC-DNA_S9/Bovine_coronavirus.

This allows users to see how reads spread across the genome of this virus and to determine whether it could be a true positive or whether it is just an artifact or contamination.

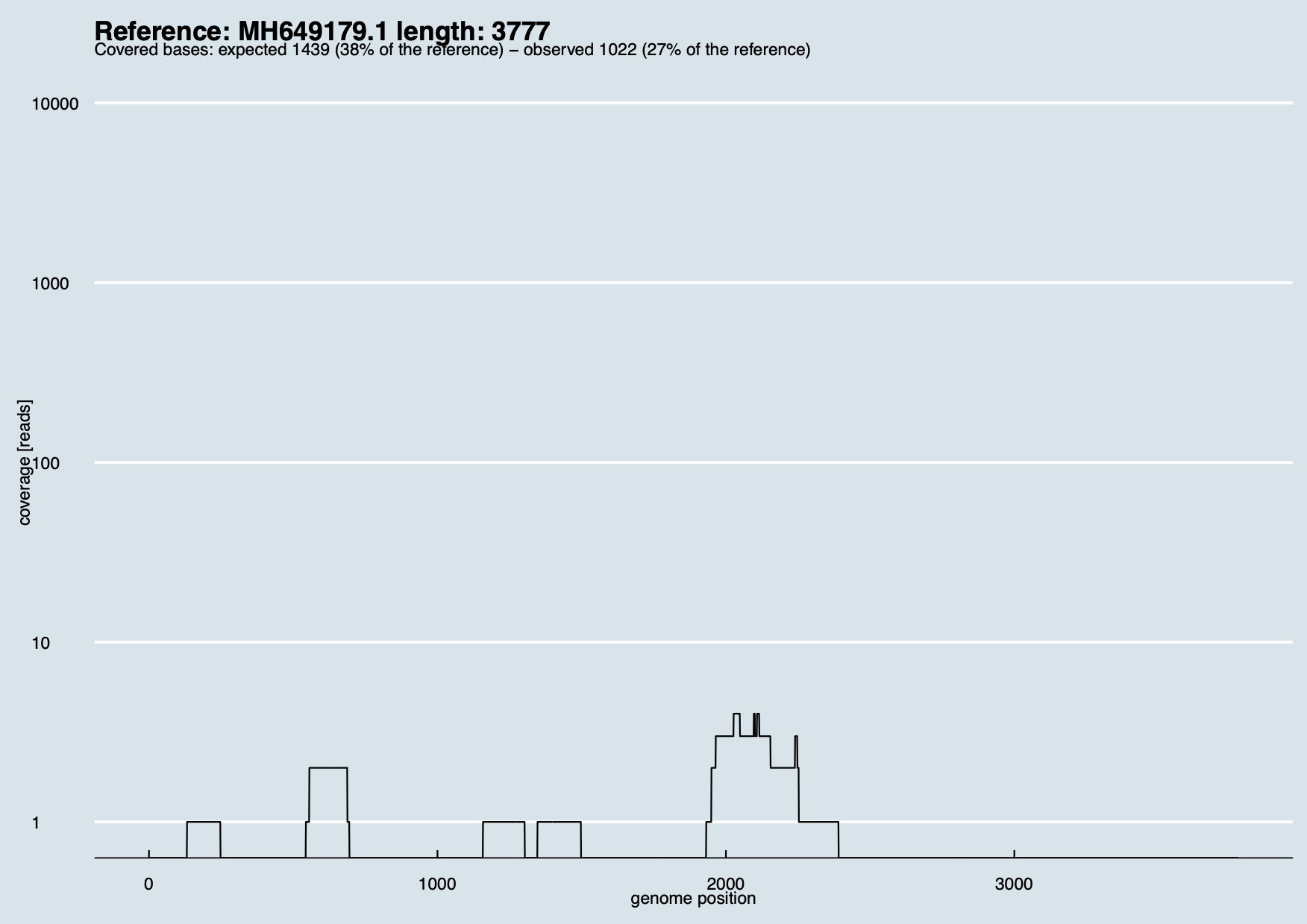

An example of a coverage plot generated by VirMet would be the following:
